dual fuel substitute natural gas NG/liquid propane LPG soundproof silent generator 10kw 10kva 1230*760*770

1 Set
MOQ
$2,320.00(1 - 2 Sets) $2,220.00(3 - 4 Sets) $2,120.00(5 - 9 Sets) $2,000.00(>=10 Sets)
цена
dual fuel substitute natural gas NG/liquid propane LPG soundproof silent generator 10kw 10kva 1230*760*770
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: PD10REG
Rated Voltage: 110V 220V 230V 380V 400V
Rated Current: 43.5A
Speed: 3000/3600RPM
Frequency: 50/60HZ
Max power: 12kw
Fuel: NG/LPG
Engine Model: 2V78FD
Bore*stroke (mm*mm): V2-78*72
Packing size (L*W*H) mm: 1230*760*770
Cooling system: Air cooled
Noise dB (A) / 23ft (7M): 77
G.W.: 250kg
Warranty: 12 Months/1000 Hours
Product name: silent standby natural gas NG/liquid propane LPG generator 10kw 10kva
Основная информация
Model Number: PD10REG, 2V78FD
Оплата и доставка Условия
Packaging Details: wooden packing
Характер продукции

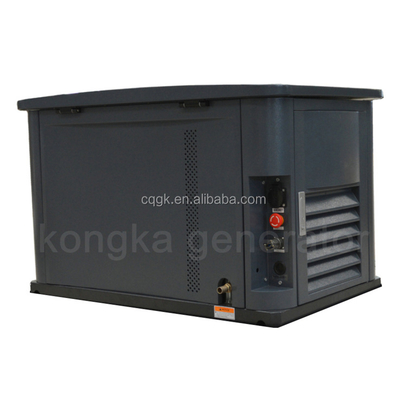

dual fuel soundproof silent standby natural gas NG/liquid propane LPG generator 10kw 10kva

Product Description

Genset Model PD10REG
Output
Rated power (LPG) 10KW
Rated power (NG) 9KW
Rated voltage / frequency 110V-60HZ OR 230V-50HZ
Rated current (LPG) 43.5A
Rated current (NG) 39.1A
Phase single phase
Rated speed (rpm) 3000 /3600
Power factor 1.0

Engine
Engine Model 2V78FD
Bore*Stroke (mm*mm) V2-78*72
Compression ratio 8.5:1
Ignition system Transistor contactless ignition
Start system Electric start
Fuel type LPG/NG
Oil capacity (L) 1.4
Cooling system Air cooled
High temperature shutdown without
Low oil pressure shutdown with

Alternator
Pressure regulating system AVR
Excitation type brush
Stator winding material copper
Rotor winding material copper
Controller Brand Smartgen

Unit
Protection class IP 23
Emergency stop switch with
Closed muffler with
Grounding system Frame ground
Noise dB (A) / 23ft (7M) 77
LPG consumption (100% load kg / hr) 3.0
NG consumption (100% load m3 / hr) 3.2
LPG inlet pressure range kPa (in.H2O) 1.7-2.7 (7-11)
NG inlet pressure range kPa (in.H2O) 1.3-2.7 (5-11)
Unit size (L*W*H) mm 1150*670*740
Packing size (L*W*H) mm 1230*760*770
N.W. (kg) 230
G.W. (kg) 250


Important Notes On Ordering Products

1. Order our products directly on the Alibaba platform,Our company defaults to the CFR price (that is, cost plus sea freight, which is usually delivered by the port of the destination country, and the buyer is responsible for customs clearance,etc.). If the buyer needs door-to-door or the warehouse and destination designated by the buyer, please contact us on Alibaba or leave a message.

2. All our products only support shipping to the port,or shipping to the door,or land transport,and do not support air transportation.

3. If there are specific Chinese port (such as Shanghai, Ningbo, Shenzhen, Guangzhou, Qingdao, etc.), please leave a message.If you need to deliver to a designated port or warehouse or residence in your country, please leave a note so that our seller can quote you the shipping cost in time(please tell me your email).

4. Provide product details as much as possible, such as:

A, Voltage (110/220/230/380/400V)? frequency (50/60HZ)? Single phase or three phase?

B, Plug type (European, American...)?

C, Need wheels?

D, Use of the product?

5. Provide detailed consignee information: company name (required, except for customs clearance in the US), contact, phone, email, address.

6. The product sample picture shows the goods, please refer to the actual receipt of the goods.

Packaging & Shipping

1 Wooden packing

2 Sea LCL or Sea FCL or Land Transport.The port of departure can choose ports such as

Chongqing, Shanghai, Guangzhou,Shenzhen or Qingdao...

Certifications

Company Information
Good quality and low price is the ultimate goal pursued by our company.

FAQ

1 Q: How long is the warranty?

A: 1000 hours or 12 months warranty, lifetime maintenance.

2 Q:How long is the delivery?
A: Our warehouse is in stock and can be delivered quickly to the customer's designated destination port.

3 Q: Which ports can be shipped?

A: Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao, Tianjin, Chongqing, etc.

4 Q: What are the transportation methods?

A: Sea LCL, Sea FCL, Land transport, Does not support Air transport.

5 Q: Can you customize?

A: Yes

6 Q: New customer payment method?

A: 30% T/T in advance + 70% balance before shipment.
