Low noise natural gas generator for home gas generator low power generator set LYNGMS40KWF5

1.0 Units
MOQ
Low noise natural gas generator for home gas generator low power generator set LYNGMS40KWF5
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 year
Сертификация: CE,ISO
Model Number: LYNGMS40KWF5
Rated Voltage: 230/400V
Rated Current: Depend on capacity
Speed: 1500RPM/1800RPM
Frequency: 50HZ
Product name: Home use natural gas inverter engine generator
Engine model: LYBT3.9G-G70
Number of cylinders: 4
Bore*stroke: 102mm*120mm
Displacement: 3.9L
Compression ratio: 10.5:1
Exhaust temp: ≤580℃
Starting method: DC24V Electric
Fuel: Biogas CNG LNG Ch4
Package: Wood Case
Основная информация
Сертификация: CE,ISO
Model Number: LYNGMS40KWF5, LYBT3.9G-G70
Оплата и доставка Условия
Packaging Details: 2200mm*940mm*1460mm,1500kg
Supply Ability: 500 Unit/Units per Month
Характер продукции

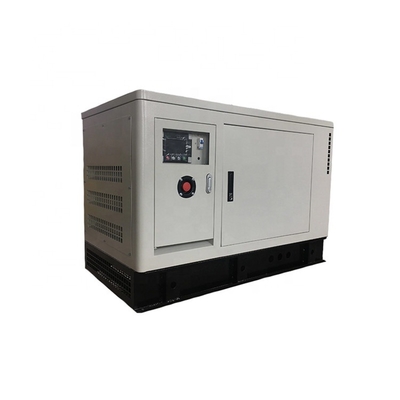

Low-noise natural gas generator for domestic gas generator low power generator set
Product Description
Specification
Primed power
40KW/50KVA
Compression ratio
10.5:1
Rated speed
1500RPM/1800RPM
Coolant capacity
20L
Frequency
50HZ/60HZ
Lubricating oil capacity
11L
Engine model
LYBT3.9G-G70
100% Load Gas Consumption
12.3 NM3/H
Alternator model
MP-40-4
Exhaust temp
≤580 ℃
Voltage
230/400V
Starting method
DC24V Electric
Controller model
HGM6110N
Genset size (open)
1800×870×1450mm
Number of cylinders
4
Genset weight(open)
1120kg
Bore×stroke
102mm×120mm
Genset weight(silent)
2200×940×1460mm
Displacement
3.9L
Genset weight(silent)
1440kg
Our Advantages
Simple mechanical structure to reduce the failure and maintenance cost
On the basis of enhancing the structure of Cummins basic engine,EAPP integret mechanical
structure has shortened at least 25% of total components,which reduces its size and weight as well.This design turns out saving a
lot on its maintenance cost benifit form this structure.
Excellent power
Large torque at lower speed, high power at higher speed, good acceleration and quick overtaking on the plain area and highway,
thus shortening running time of trucks.
First choice in saving fuel
High energy ignition, full combustion, high efficiency.Electronic control
calibration software is optimized, causing normal engine operation ranges in economic zone of fuel consumption.
Reliability and durability
Inheritng superior reliablity from engines, integrated design and fewer component parts results in much lower engine failure rate.Reinforeced fuel filter protection system is used, removing moisture content, ferric oxide, dust in the fuel before they entering
into the fuel rail.
Price Saving
Very competitive price compared to the engine in same quality. Above have shown the advantages of our products, and we refuse to
use any piece of components at low quality. So if you are looking for a high quality products, our product deserve that pay.
Why Choose Us
PRODUCTION FLOW
Related products

500kw Natural gas generator with heat recovery

120kw Natural gas generator

30kw Natural gas generator with chp

Exclusive Project

K50 explosion proof engine for boosting oil pipeline

Atex zone 2 air compressor with DNV lifting frame

130kw explosion proof einge for fire pump

Exhibition
FAQ
1. What is the warranty ?
The standard warranty is 12months or 1000 running hours whichever occured first.Any damaged parts during warranty period can be shipped free by express to you.
2. Which fields or what's the application of your natural gas biogas generator?
According to different power, the natural gas biogas generato can be used in residental, industrial, marine, generating, power plant, etc. If any special application project, welcome to contact us firstly.
3. What's the power range you can make for gas power generator?
7-1000KW is normal choice for customers. For other customized power, welcome to contact us.
4. Will you test your generators or engines before shipped?
Yes, every product will be tested individually in our test lab and test report and test vidoe can be provided.
5. What's the lead time and delivery time for your gas power generator?
Usually 15-35 days for lead time. Delivery time is according to your choice of shipping method.
6. What's the payment method do you accept?
We accept Alibaba trade assurance, west union, TT, etc. If you have speical requirement, welcome to contact us.
7. Are you manufacturer?
Yes, we are both manufacturer and foreign trade company, cooperating with many famous brand suppliers. Welcome to visit our factory.
